A Massive LED Screen Powers a Hybrid World Cup Studio

An Alfalite ORIM Giant LED Screen shines World Cup graphics.
(Image credit: Alfalite)

A 132-square-meter LED wall from Alfalite was selected as the centerpiece for PLAZAMEDIA's new hybrid studio near Munich to broadcast all the FIFA World Cup matches from Qatar. The TV set will use camera tracking and multicamera systems from Mo-Sys (opens in new tab), also the Alfalite LED wall supplier for this installation.

PLAZAMEDIA GmbH is a top live entertainment and sporting events producer and established provider of intelligent digital content solutions in Germany. It has chosen an Alfalite Modularpix Pro VP XR 1.9 ORIM 33x3.5-meter curved U-shaped LED wall for its new hybrid studio at the AGROB Medienpark to broadcast the 64 FIFA games from Qatar, including 23 live matches. Deutsche Telekom will air all 64 2022 FIFA World Cup matches live on MagentaTV.

The new XR LED studio in Ismaning near Munich will create a unique experience for viewers at home and in the studio.

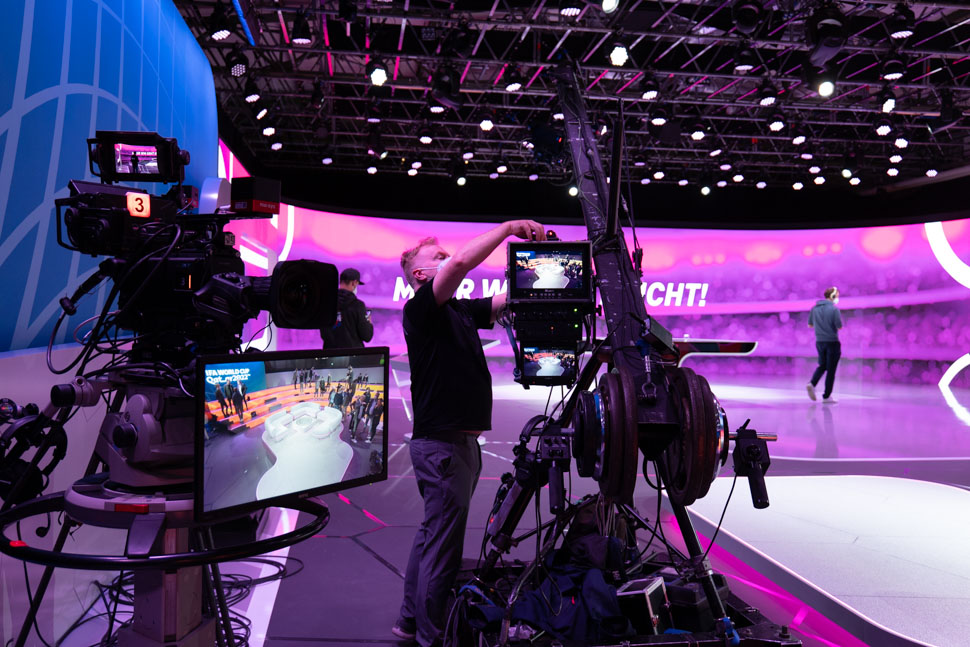

Set producers get cameras and monitors ready for the Alfalite ORIM Giant LED Screen at the World Cup.

(Image credit: Alfalite)

[SCN Installation Showcase 2022] (opens in new tab)

Mo-Sys and the Spanish company Alfalite installed the ORIM (Optical Resin Injection Module) LED wall in record time, surprising and pleasing PLAZAMEDIA. ORIM technology is a new termination system for LED panels through an injection of optical resin that improves precision between modules (<0.5mm). It also provides a magnified 175-degree horizontal and vertical viewing angle.

LED panels with ORIM technology have superior antistatic electricity protection (ESD > 10kV), improved thermal dissipation parameters, and excellent resistance to impacts, liquids, chemicals, and fire (with UL94 compliance). They are also easier to clean, suffer less deterioration and have the shortest repair time on the market.

The Alfalite Modularpix Pro VP XR model has a fine pixel pitch of 1.9 millimeters, optical parameters, and brightness cd/m2 > 1,800 nits. This product has revolutionized the LED screen market, providing a solution for virtual production or mixed reality for broadcasting, film, series, or advertising productions.

[JUST RELEASED: SCN Top 50 Systems Integrators 2022] (opens in new tab)

Two extra features make Alfalite panels stand out from other LED panels in the market. One is the low average consumption (35 watts), and the other is the low levels of electromagnetic compatibility (Certification EMC), which allow Alfalite panels to coexist with other electronic systems without interference, as is often the case on TV studios or film sets.

Alfalite ORIM Giant LED Screen at the hybrid World Cup studio.

(Image credit: Alfalite)

The 350-square-meter hybrid studio set will combine existing set architecture, and physical media feeds with a digitally generated virtual extension ("augmented reality") in a 360-degree world. Four cameras will interplay virtual and real elements in real-time from the giant Alfalite LED wall during the 29-day FIFA World Cup Event.

To ensure that all camera movements are being transferred to the virtual world, the position of the four studio cameras will be constantly tracked and the data transferred to the render engines using Mo-Sys Startracker camera tracking system and Mo-Sys broadcast Mixed Reality system (bMR).

[AV Network's top stories, product news, and expert insights] (opens in new tab)

"We are thrilled that a prestigious company as PLAZAMEDIA chose ORIM LED Wall for their new and innovative XR LED Studio," Jesús Cabrera, CEO of Alfalite, said. "It's great to work with these technology partners and continue improving our technology with Mo-Sys."

Shortly, FIFA World Cup fans in Germany will enjoy a unique augmented reality experience with 14 hours of programming daily, including live games directly from Qatar, conferences for parallel matches and in-studio discussions with commentators.
