For decades, the practice of designing and deploying professional sound systems was largely an exercise in experience and sometimes luck. It was common to hang the loudspeakers where you thought they would work best, then plug them in, and see how well the sound actually traveled. Since expectations have a way of not living up to reality, this approach resulted in a lot of extra work for sound designers and installers alike.
Today, thanks to audio mapping software, this grueling task is a thing of the past. Audio mapping software is a predictive 3D simulation tool that lets you test out loudspeaker placements and performance without actually having to move them.
Instead, you position specific speakers in a virtual space and test their performance using the software's mapping capabilities. The result: By the time it comes to physically install the speakers, the best locations and performance targets have already been determined.
That being said, these tools do not replace the seasoned acoustic engineer; rather, they give these professionals a superpower—the ability to see the invisible behavior of a room.
"At its core, it's predictive modeling for sound," explained Ryan John, director of product management, software, for L-Acoustics, which offers the Soundvision 3D simulation and sound system design platform. "Instead of guessing how a room will behave, or finding problems on load-in day, Soundvision allows you to see hot spots, gaps, and delay issues on screen and fix them before anyone touches a cable."
Trading Guesswork for Data
When a lighting engineer sets up lights, they can put them in place, turn them on, and see where the light actually goes. But this isn't true for sound engineers. They can put the speakers in place, but they can't see the sound waves they are trying to control.
"Sound is subjective and mostly invisible other than visual clues such as ripples on a T-shirt while standing near a subwoofer," noted Rudd Lance, d&b audiotechnik's advanced systems specialist for immersive systems, whose ArrayCalc software handles precise SPL and localization mapping. "Without being able to predict what a system is going to do, the result would be days of putting loudspeakers in place only to measure them and change the deployment time and time again."
The fundamental beauty of audio mapping software is that it makes sound waves visible, at least on a computer screen. Not only does this approach save time and frustration, but it also saves money because deployments can be completed more quickly and effectively.

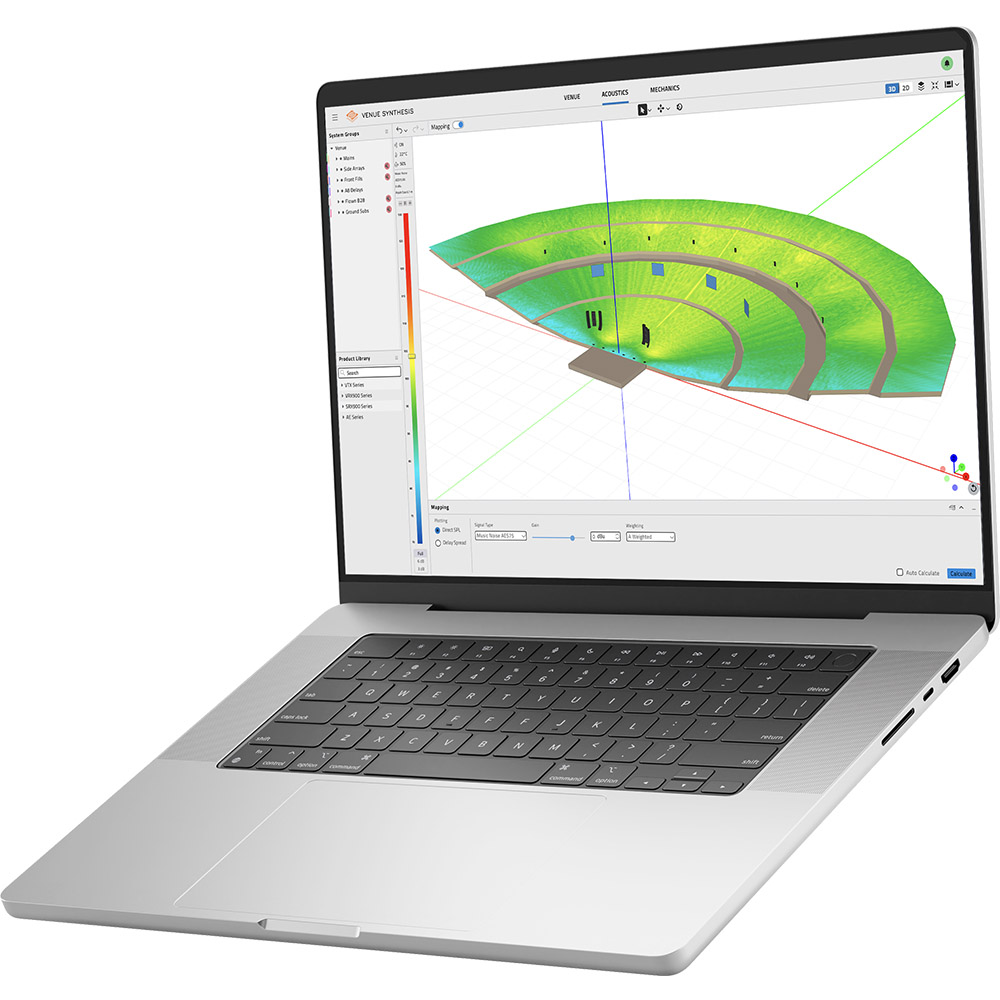

"Rather than relying on assumptions or extensive on-site adjustments, designers can model a venue in 3D, place loudspeakers, evaluate coverage, and verify mechanical configurations in a virtual environment," said George Georgallis, product management for performance audio, HARMAN Professional Solutions. "This gives designers a detailed understanding of how a system is expected to perform before any equipment is deployed." HARMAN produces JBL Venue Synthesis, a comprehensive 3D acoustic simulation and mechanical analysis tool.
By using audio mapping and predictive data, integrators no longer have to ask clients to simply trust their expertise.
"Decisions stop being about how many speakers do we think we need and start being about what do we need to achieve our design goals for this event," John said. "It also allows integrators and consultants to defend their design to a client with data instead of opinion, which changes the whole buying conversation. Nobody wants to over-spec a system just to be safe, and nobody wants a callback because a section came in six dB hot or cold."
Being able to provide this form of visual proof to a client is a significant improvement over using traditional spec sheets. Andy Davies, Meyer Sound's senior director of product management—the team behind the MAPP 3D high-resolution audio prediction tool—emphasized this point. "The data in MAPP 3D provides far more information than any datasheet ever could," he said, "providing a visual representation of the output of a loudspeaker, helping users understand which products are the right functional fit for any given application."
Virtual Limits
Audio mapping software is not a magic wand, and it operates on a strict "garbage in, garbage out" principle. In plain language, a digital map cannot fix poor input data, nor can it entirely replace the critical listening skills of an experienced engineer.
"A simulation is only as good as the accuracy of the model you build, and the assumptions in the room acoustics—reflections, absorption, HVAC noise, and audience attenuation—are genuinely hard to capture with precision, especially in complex or unusual architecture," John cautioned. "I always tell people to treat the map as your design foundation, not your final QC."
Also, no matter how good the audio mapping software may be, the physical environment has the last word in this discussion. "While the software provides an excellent representation of direct sound, room acoustics and environmental conditions can still influence the final system performance," Georgallis told SCN. "Ultimately, room acoustics and tuning the system on site remain essential parts of achieving the best possible performance."
One area where audio mapping software is an absolute must is immersive environments. Trying to execute these installations by ear alone is practically impossible. "Considering the cost of equipment and the amount of time required to complete a proper installation, I believe it is imperative that audio mapping be employed when designing any immersive audio space," said Lance.
Conversely, budget-sized installations in schools and municipal buildings also benefit significantly from audio mapping. Because these projects don't have the funds to absorb costly errors, integrators have to get the design right the first time. "These projects may not always involve large-scale systems, but acoustic modeling can still help designers make better decisions, avoid unnecessary costs, and deliver a more consistent listening experience," Georgallis added.
The Next Frontier
The science of audio mapping is already well established, so the future of this software is less about tweaking basic algorithms and more about improving workflow efficiency, supporting smart automation, and working in collaborative cloud environments. Software developers are focusing on making these tools more accessible to a wider range of stakeholders.
Davies noted that Meyer Sound is launching Aperture, an add-on visualization tool "aimed at giving system designers enhanced tools to share designs, enabling presentation options and graphic resources from a simple, online tool." L-Acoustics has offered a similar capability for the past year through Soundvision Connect, a browser-based companion that lets architects, consultants, and clients step into the same 3D model and SPL data without opening the software themselves.
Manufacturers are also using automation to strip away the most tedious, repetitive technical tasks. "As sound systems become more sophisticated, processes such as delay optimization for full-range systems and Electronic Design Synthesis [EDS] for large subwoofer arrays can become both time-consuming and technically challenging," explained Georgallis. "By automating these calculations, Venue Synthesis allows engineers to spend less time on repetitive optimization tasks and more time evaluating and refining the overall system design."
Ultimately, the future of Pro AV design is collaborative, interconnected, and increasingly intelligent. The goal is to get architects, consultants, and clients "into the same 3D data in real time, so decisions happen faster and with everyone aligned," said John. He added that machine learning will soon sharpen these tools by analyzing real-world measurement data over time.
In the end, audio mapping has fundamentally transformed how sound systems are conceived and delivered. In an industry where time is money and precision is paramount, turning guesswork into a guaranteed result is the ultimate payoff.
